INFRASTRUCTURE

UNIT – 2 : PLOT NO. : A – 316 & A – 316/1



PLOT AREA :

5000 SQ. MTR. 3000 SQ. MTR. (FULLY CONCRETED) 1076 SQ. MTR. (OPEN YARD FULLY CONCRETED)



COVERED BAY :

SHOP SHOP SIZE EOT CRANES
SS BAY

10 MTRS. WIDE X 95 MTRS. LONG
HEIGHT UNDER CRANE - 8.5 MTRS.

10 M.TON – 01 NO.
SS BAY 10 MTRS. WIDE X 95 MTRS. LONG
HEIGHT UNDER CRANE - 8.5 MTRS.
15 M.TON – 01 NO.
CS BAY 16 MTRS. WIDE X 95 MTRS. LONG
HEIGHT UNDER CRANE - 10.5 MTRS.
20 M.TON – 01 NO.
CS BAY

16 MTRS. WIDE X 95 MTRS. LONG
HEIGHT UNDER CRANE - 10.5 MTRS.

30 M.TON – 01 NO.
CS BAY

5 MTRS. WIDE X 40 MTRS. LONG
HEIGHT UNDER CRANE - 5 MTRS.

3 M.TON – 01 NO.


CONNECTED LOAD01 :

200 H.P. (150 KW)



POWER GENERATOR :

180 KVA

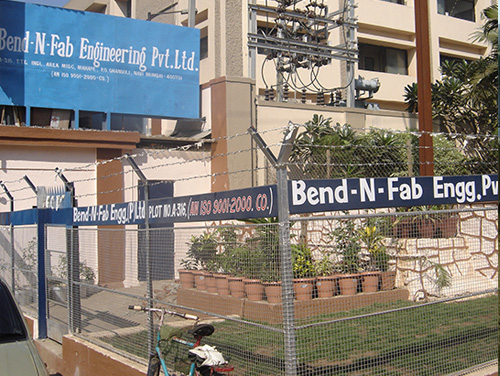

A-316 : FRONT VIEW

GARDEN

A-316 / 1 OPEN YARD (FULLY CONCRETED) 1076 SQ. MTR.

CONE FORMING MACHINE.

HYDRAULIC PRESS

CAPACITY - 600 TON X 5.5 METER WIDTH
